Internal Core-Pulling Mold

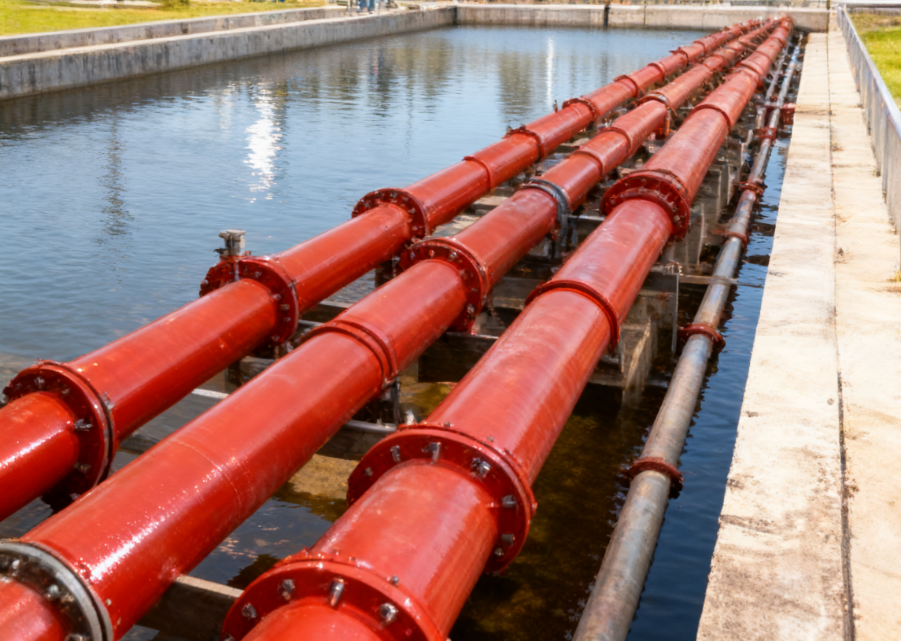

Large-Scale Water Pipes
The Challenge: Molten plastic has to travel exceptionally long distances to fill the large mold cavities of pipes and major fittings. This can lead to premature cooling, increased viscosity, and incomplete filling. Furthermore, the flow paths often meet from multiple directions, creating weak points known as weld lines, which can be potential failure points under pressure. Our Solution: We utilize advanced simulation software to predict flow patterns and optimize gate locations. High-flow-grade engineering materials and precise control over melt temperature and injection speed ensure complete filling and stronger, more dispersed weld lines.
The Challenge: The massive surface area and thick walls of large pipes make uniform cooling extremely difficult. Variations in cooling rates cause internal stresses, leading to part warpage, shrinkage, and ovality (out-of-roundness), which affects sealing and joint integrity. Our Solution: We engineer molds with conformal cooling channels that follow the contour of the part for optimal heat extraction. A multi-zone temperature control system and a calculated, sequential cooling process ensure the part cools evenly from the inside out, minimizing residual stress and deformation.
The Challenge: The large projected area of a pipe or fitting mold requires an enormous clamping force to keep the mold closed against the high injection pressure. Without sufficient tonnage, the mold can "flash," creating thin, unwanted plastic fins on the part seams. This demands exceptionally large, high-tonnage injection molding machines. Our Solution: Our production facilities are equipped with high-tonnage presses specifically designed for such large-scale projects. We precisely calculate the required clamping force for each project to ensure flawless mold sealing without flash.
The Challenge: Due to their size and the shrinkage that occurs during cooling, large pipes can grip tightly onto the mold core. Ejecting them without causing damage—such as scratches, deformations, or "sticking"—requires a robust and perfectly synchronized ejection system. Our Solution: Molds are designed with generous draft angles, highly polished surfaces, and advanced ejection mechanisms (e.g., multiple hydraulic ejector plates, air poppet valves, and stripper plates) to ensure a smooth, controlled, and damage-free demolding process.
The Challenge: The molds ("tools") themselves are massive and expensive assets. The constant, extreme injection pressure and clamping force can cause deflection (bending) in mold plates and core components. Over time, this leads to wear, premature failure, and parts that don't meet dimensional tolerances. Our Solution: Our molds are constructed from high-strength, pre-hardened or maraging steels. They are designed with robust support pillars and interlocks to resist deflection, ensuring longevity and consistent part quality over the mold's entire lifecycle.
The Challenge: Thick sections, especially at the hubs, spigots, or reinforcing ribs of fittings, are prone to sink marks (surface depressions) and internal voids. These occur when the outer skin cools and solidifies too quickly while the inner material continues to shrink, pulling the surface inward. Our Solution: We employ a combination of techniques including optimized packing pressure profiles, gas-assist injection molding (where applicable), and strategic part design to ensure uniform wall thickness and adequate material packing to compensate for shrinkage.
Solving Complex Internal Demolding Challenges with Advanced Slider Mechanisms
Large-scale water pipe fittings, such as those with internal grooves or undercuts, present significant challenges in injection molding. Traditional demolding methods often struggle with intricate internal structures, leading to defects like deformation or damage. Our patented internal core-pulling mold technology addresses these issues through innovative slider mechanisms, enabling efficient production of high-precision, durable pipe fittings for infrastructure projects.
1.Slider-Based Internal Retraction Mechanism
2.Rotary Disk Drive System
3.Compact & Adaptive Structure
Efficient Demolding: Sliders retract inward seamlessly, eliminating forced ejection and reducing scrap rates by over 30% .
High Precision: Ensures consistent formation of internal features (e.g., grooves, threads) with tolerances ≤ ±0.1 mm .
Durability: Mold components made from hardened steels (e.g., maraging steel) withstand high injection pressures and cyclic loads .
Automation-Friendly: Integrates with robotic part-handling systems for high-volume production, cutting cycle times by 22% .
Patented Curved Slider System Enables Complex Internal Geometry Demolding
Large-diameter water pipes with internal arc profiles and radial undercuts present one of injection molding’s most complex challenges. Traditional straight-pull mechanisms cannot form these curved internal structures without damaging the product. Our patented Arc Core-Pull Mold Technology introduces an innovative curved slider system that moves along precise circular paths, enabling flawless demolding of sophisticated internal geometries previously considered impossible to mass-produce.
1. Curved Slider Mechanism
2. Helical Drive System
3. Integrated Cooling & Ejection
Complex Geometry Enablement: Produces pipes with internal arc grooves, spiral channels, and radial reinforcement ribs with tolerances within ±0.15mm
Eliminated Damage: Zero demolding-related scrap rates in production runs exceeding 300,000 cycles
Rapid Cycle Times: 30% faster than conventional hydraulic core-pull systems due to mechanical synchronization
Maintenance Optimization: Simplified access to wear components increases mold uptime to 98.5%
Municipal Water Networks: Manufacturing pipe fittings with internal threads or sealing grooves for leak-proof joints .
Large-Diameter Drainage Pipes: Producing fittings with internal ribs for structural reinforcement .
Compact Connectors: Enabling demolding of tiny internal grooves in connectors using micro-slider variants .
Municipal Water Systems: Large-diameter pipes with internal flow guides for turbulence reduction
Industrial Drainage: Pipes featuring spiral reinforcement ribs for structural integrity under backfill pressure
Chemical Processing: Corrosion-resistant pipes with internal mixing channels for fluid processing
Developed and patented internal core-pull systems and arc core-pull mold technology, enabling the production of large-diameter pipes with complex internal geometries
Successfully implemented curved slider mechanisms for demolding intricate internal arc profiles and undercuts
Integrated helical drive systems to replace conventional hydraulic solutions, improving precision and repeatability
30% faster cycle times compared to traditional molding methods
Maintained dimensional tolerances within ±0.15mm across production runs exceeding 300,000 cycles
Reduced scrap rates to near-zero levels through optimized demolding processes
Enabled use of recycled materials (rHDPE, rPP) without compromising product quality
